Description

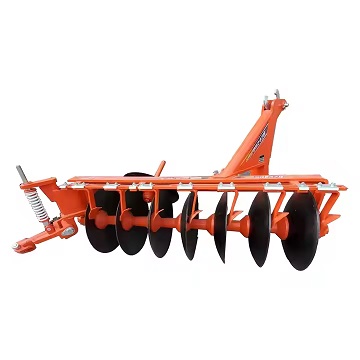

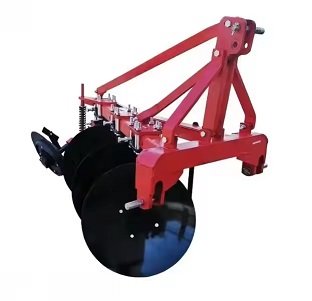

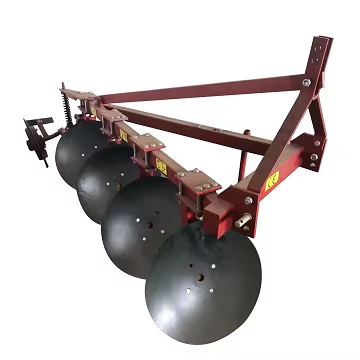

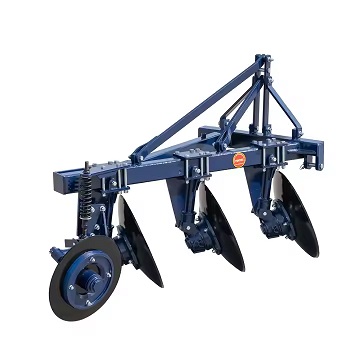

1LY series disc plow is specially designed, manufactured and borrowed according to the characteristics of foreign disc plows. It is fully suspended by four-wheel tractors. The disc rotates when turning the soil. It is especially suitable for farming on the land with overgrown weeds, many stems and brick soil friction.
Detail Parameters
Model |
1LY-2 |
1LY-3 |
1LY-4 |
1LY-5 |
Working depth |
25-30 cm |
25-30 cm |
25-30 cm |
25-30 cm |
Working width |
600 mm |
900 mm |
1200 mm |
1500 mm |
No. of disc |
2 |
3 |
4 |
5 |
Dia of disc |
660 mm |
660 mm |
660 mm |
660 mm |
Weight |
350 kg |
400 kg |
470 kg |
560 kg |
Matched power |
40 hp |
60 hp |
80 hp |
120 hp |
Linkage |
3 point mounted |
3 point mounted |
3 point mounted |
3 point mounted |
